Description

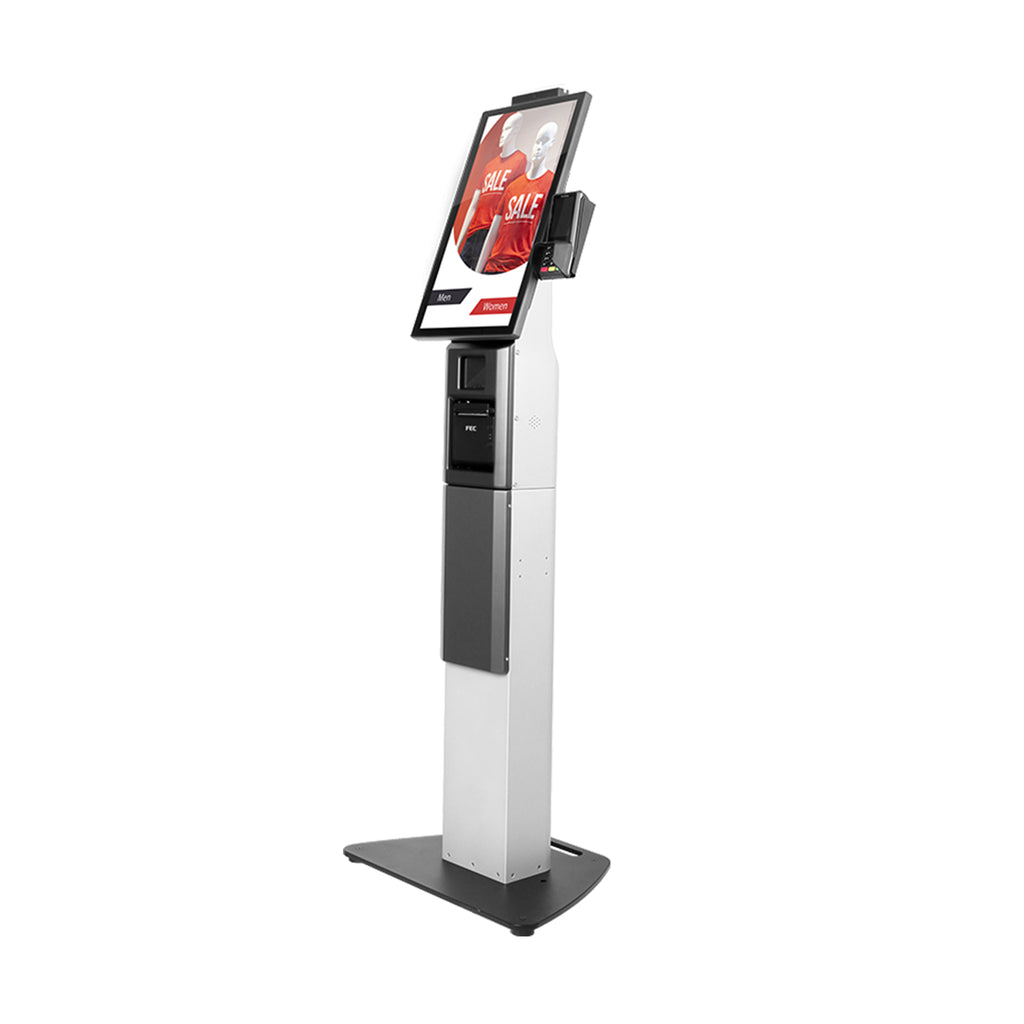

FEC XELF Terminal PP-9132W, 22" Self Service System (Floorstand)
The FEC XELF PP-9132W is a modern 22 inch self service terminal specifically designed for use in retail, hospitality and public environments. With its large touch display, powerful Android platform and stable floor stand construction, the terminal provides a reliable and versatile solution for self checkout, self ordering and digital information applications.

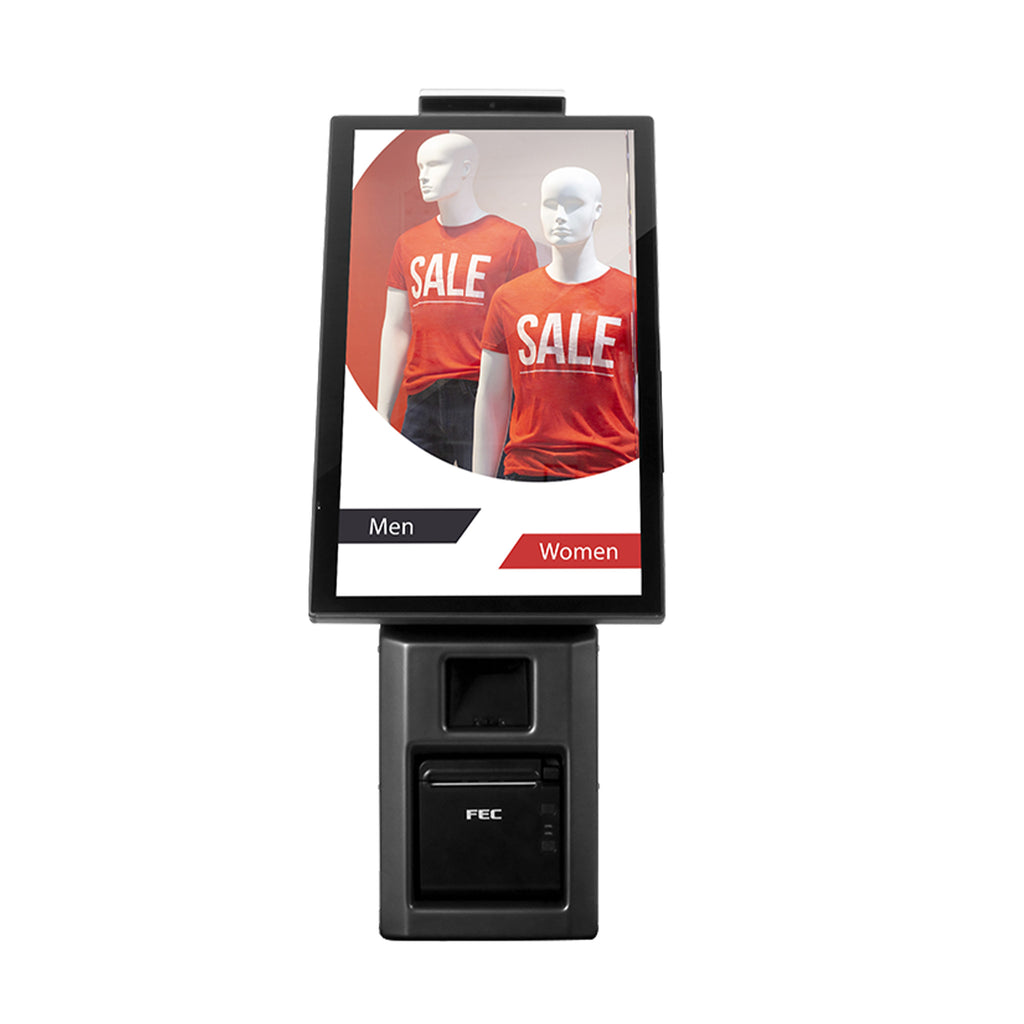

The 21.5 inch TFT LCD display with PCAP Touch, 250 nits brightness, Full HD resolution and anti glare surface provides clear visuals and precise operation. Thanks to its upright display design, the terminal is ideally suited for customer oriented self service processes such as ordering, product navigation, ticket sales or the presentation of digital content.
At its core is an RK3568 Quad Core processor with 4 GB DDR3L RAM and 64 GB eMMC storage. This enables smooth and stable operation even with graphics intensive applications or high levels of user activity. The Android 12 operating system provides modern software compatibility, high security and fast response times.
The XELF terminal offers comprehensive connectivity options including LAN, WiFi, Bluetooth, USB 2.0/3.0, COM ports and a 20 V DC input. The integrated cash drawer interface allows the terminal to be connected directly to existing POS systems. Optional components such as an FEC TP series thermal printer, 2D scanner module, LED indicators or payment mounts can be added, making the terminal highly flexible.
The robust aluminum die cast housing and high quality construction ensure durable and reliable operation. With mounting options such as VESA 100 x 100, the PP-9132W can be used both as a desktop system and as a floor standing terminal.
The FEC XELF Terminal PP-9132W is an ideal choice for businesses looking to provide their customers with modern, fast and intuitive self service solutions. It combines efficiency, flexibility and reliable performance for continuous professional use.
Specifications
| Operating System | Android 12 |
| Display | 21.5" TFT LCD Panel, PCAP Touch, 250 nits, anti glare display Resolution 1920 x 1080 |
| Processor | RK3568 Quad Core Cortex A55, up to 2.0 GHz |
| Memory | 4 GB DDR3L |
| Storage | 64 GB eMMC |
| Connectivity | WiFi / Bluetooth |
| Speakers | 2 x 5 W internal speakers |
| Connections | 1 x 20 V DC Input 1 x GigaLAN 1 x Video Port 1 x Cash Drawer (12 V / 24 V) 1 x Micro SD Card 1 x Recovery Button 3 x USB 2.0 1 x USB 3.0 2 x COM (RI / 5 V / 12 V) |
| 2nd I/O | 1 x 24 V DC Out 2 x USB 2.0 1 x COM (DB9, COM3 RI / 5 V / 12 V) |
| Accessories | Printer included Scanner set included LED Bar, optional Payment mount for P400 and others, optional |
| Mounting Options | VESA 100 x 100 |
| Environmental Conditions | Operating temperature: 0 °C to 40 °C |
| Power Supply | External 20 V / 130 W power supply |
| Dimensions approx. (Width x Depth x Height) | 300 x 780 x 270 mm (Desktop Version) |
| Weight approx. | 12kg (Desktop) / 25kg (Floorstand) |
