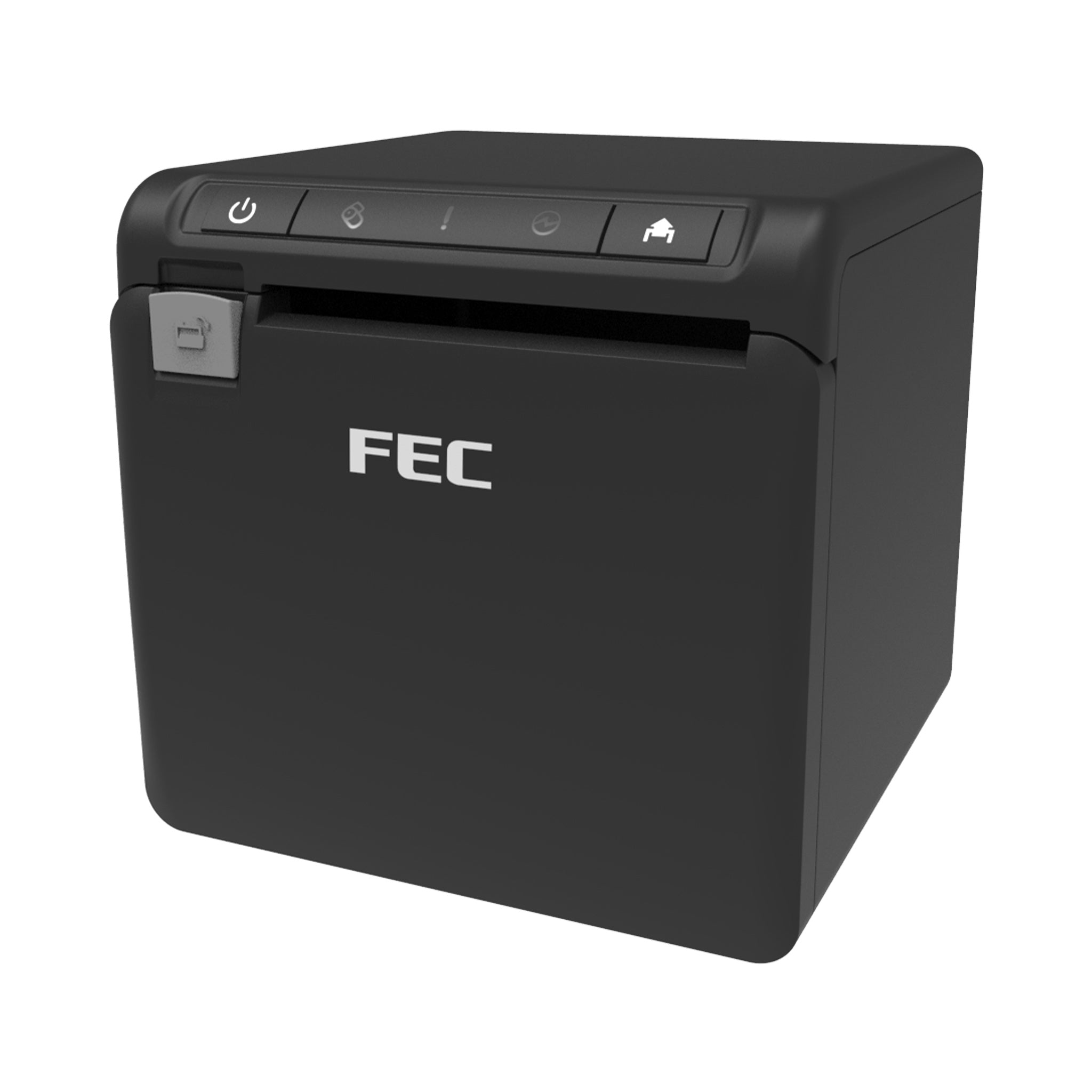

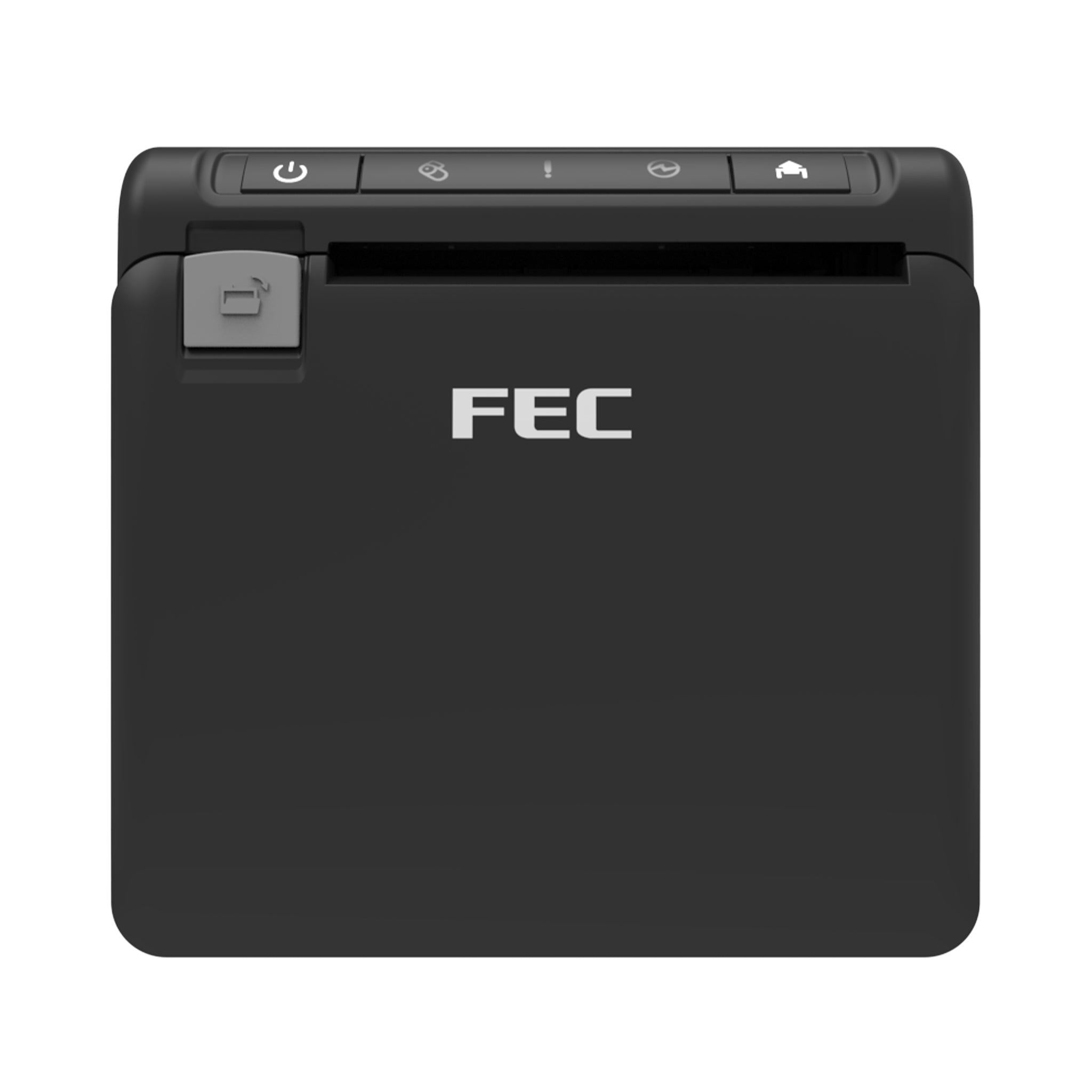

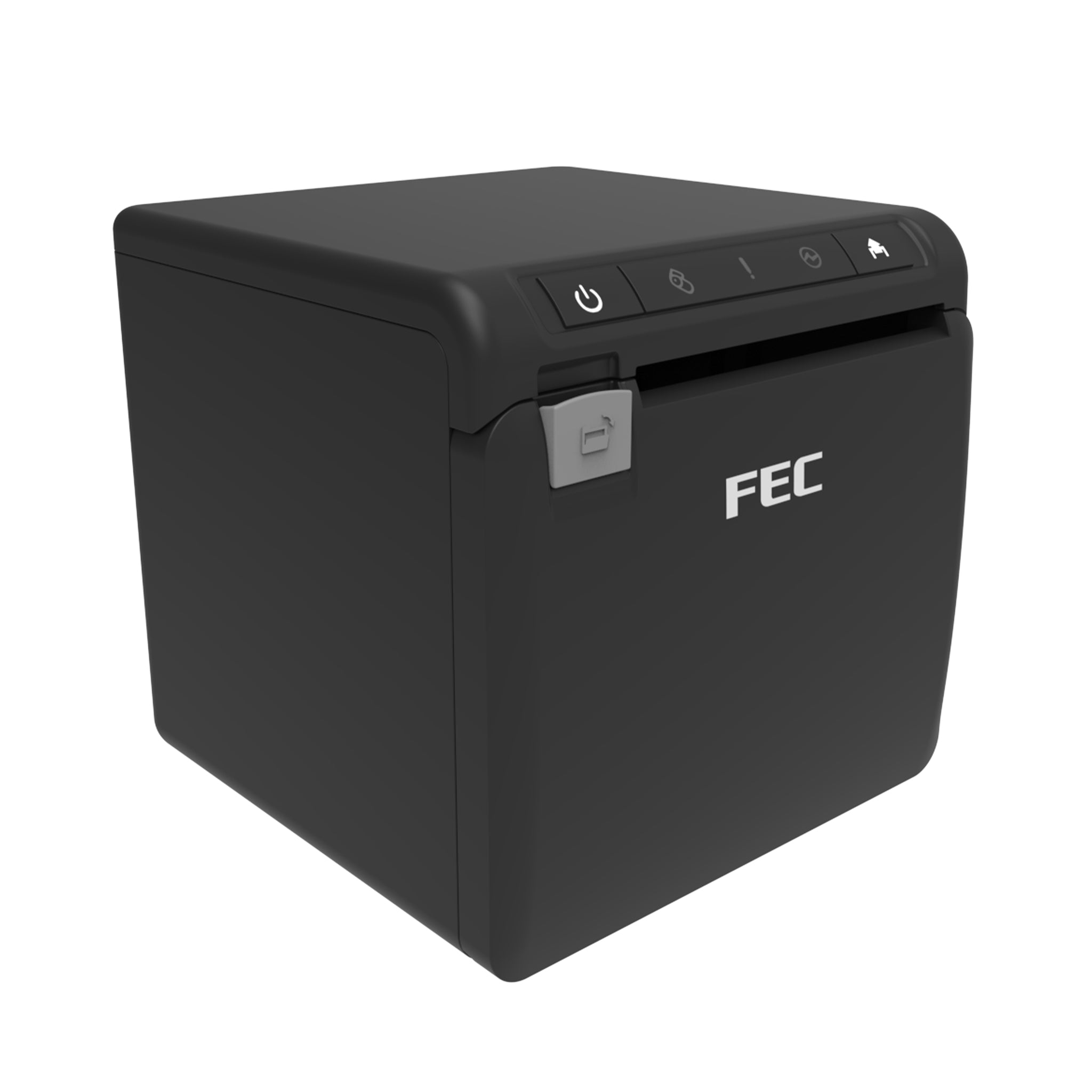

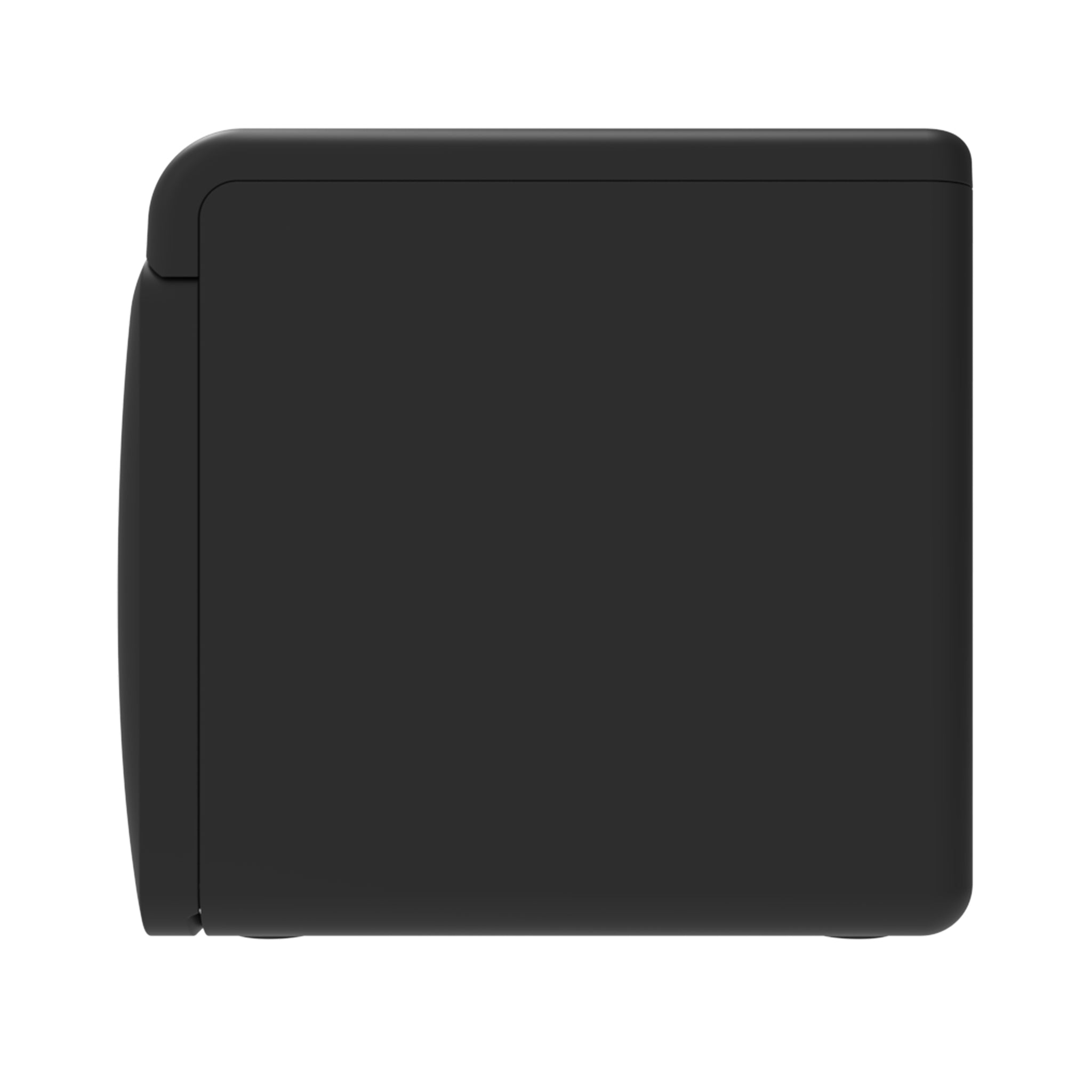

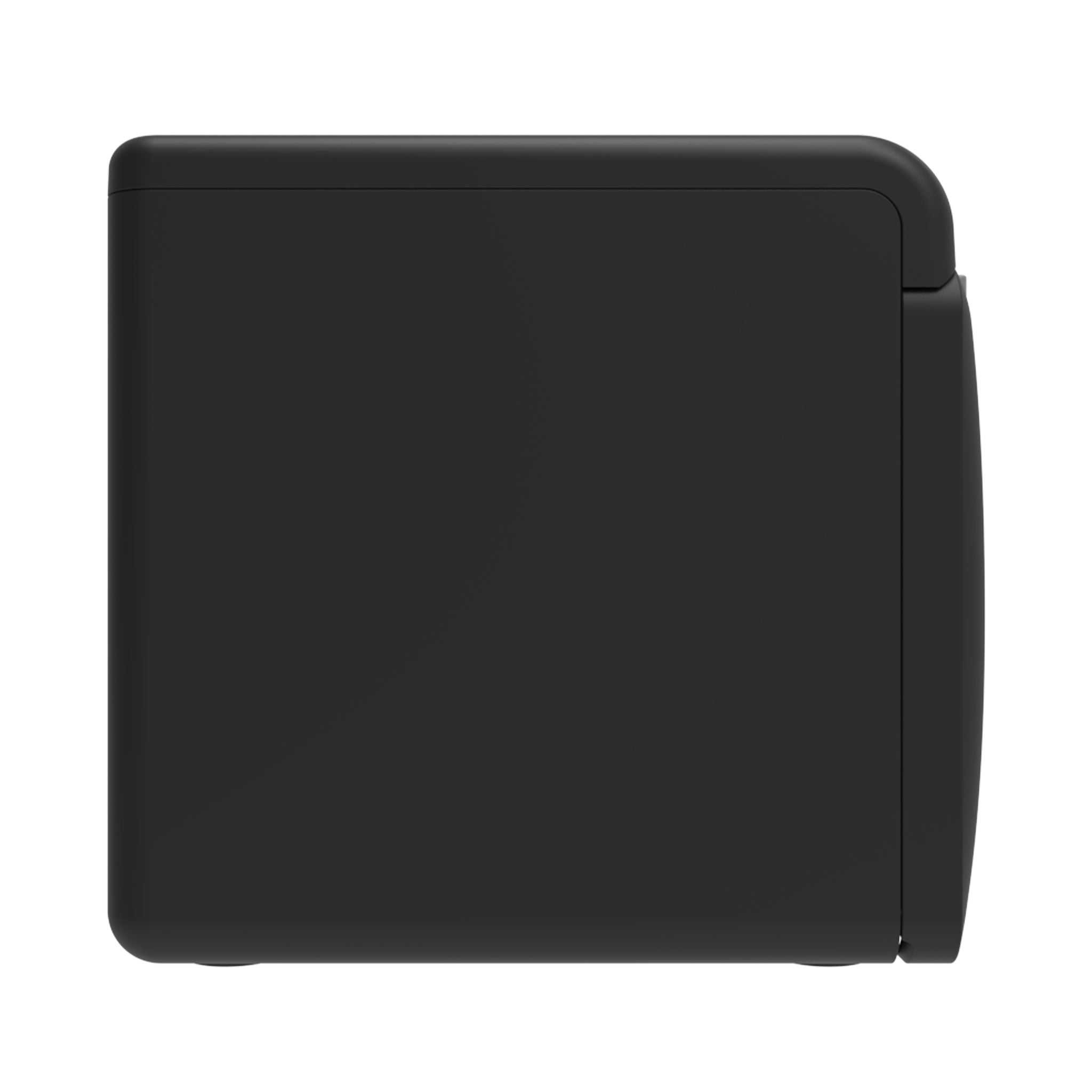

FEC TP-200 Thermal Receipt Printer
The FEC TP-200 is the powerful successor to the popular TP-100 and offers numerous improvements in speed, functionality and reliability. The modern thermal printer is designed for professional use at POS workstations in retail, hospitality and service environments and combines robust technology with fast print processing.
With a print speed of up to 250 mm/s, the TP-200 enables fast receipt and document printing, making it ideal for high traffic POS environments. Direct Thermal technology provides precise printing without ink or toner and additionally supports QR codes as well as a wide range of 1D and 2D barcodes.
Thanks to easy paper handling with 80 mm paper rolls and support for partial or full cutting, the printer operates particularly efficiently. Sensors for paper shortage, cover opening and print head overheating help increase operational reliability.
The FEC TP-200 offers versatile connectivity options including USB, RS232 and Ethernet, as well as an RJ11 port for the cash drawer. This allows the printer to be easily integrated into existing POS systems. Drivers for Windows, Linux, Mac and Android provide broad compatibility.
With its high durability, compact design and improved performance, the FEC TP-200 is an ideal choice for businesses looking for a fast, reliable and modern receipt printer as well as a suitable replacement for the TP-100.
Specifications
| Printing Method | Thermal printing / supports QR code printing |
| Printer Setup | Supports header margin adjustment, line spacing, receipt width and adjustable barcode height |
| Resolution | 203 dpi |
| Print Width | 78 mm / 48 mm |
| Print Speed | Max. 250 mm/s |
| Paper Type | Thermal continuous paper, black mark paper |
| Paper Width | 79.5 ± 0.5 mm |
| Paper Thickness | 0.06 to 0.08 mm |
| Paper Roll | Max. Ø 80 mm |
| Cutting Mode | Partial cut / full cut, optional |
| Sensors | Paper shortage detection Cover open detection Print head overheating detection |
| Memory | RAM: 8 MB Flash: 4 MB |
| Flash | 4 MByte / configurable to 128 KB |
| SRAM | 8 MB external |
| Cash Drawer | RS232, 25 Pin |
| Parallel Interface | IEEE1284, optional |
| Ethernet Interface | 10/100BASE T |
| Cash Drawer Connection | 1 x RJ11, currently supports one cash drawer RJ12 is required to control two cash drawers |
| External Interfaces | 1 x USB Type B 1 x Serial RS232C Ethernet 10/100BASE T RJ45 + RJ11 for cash drawer |
| Buttons | Power button / Cover button / Feed button |
| Power Supply | Adapter: 24 V / 2.5 A Power on via button, automatic power supply |
