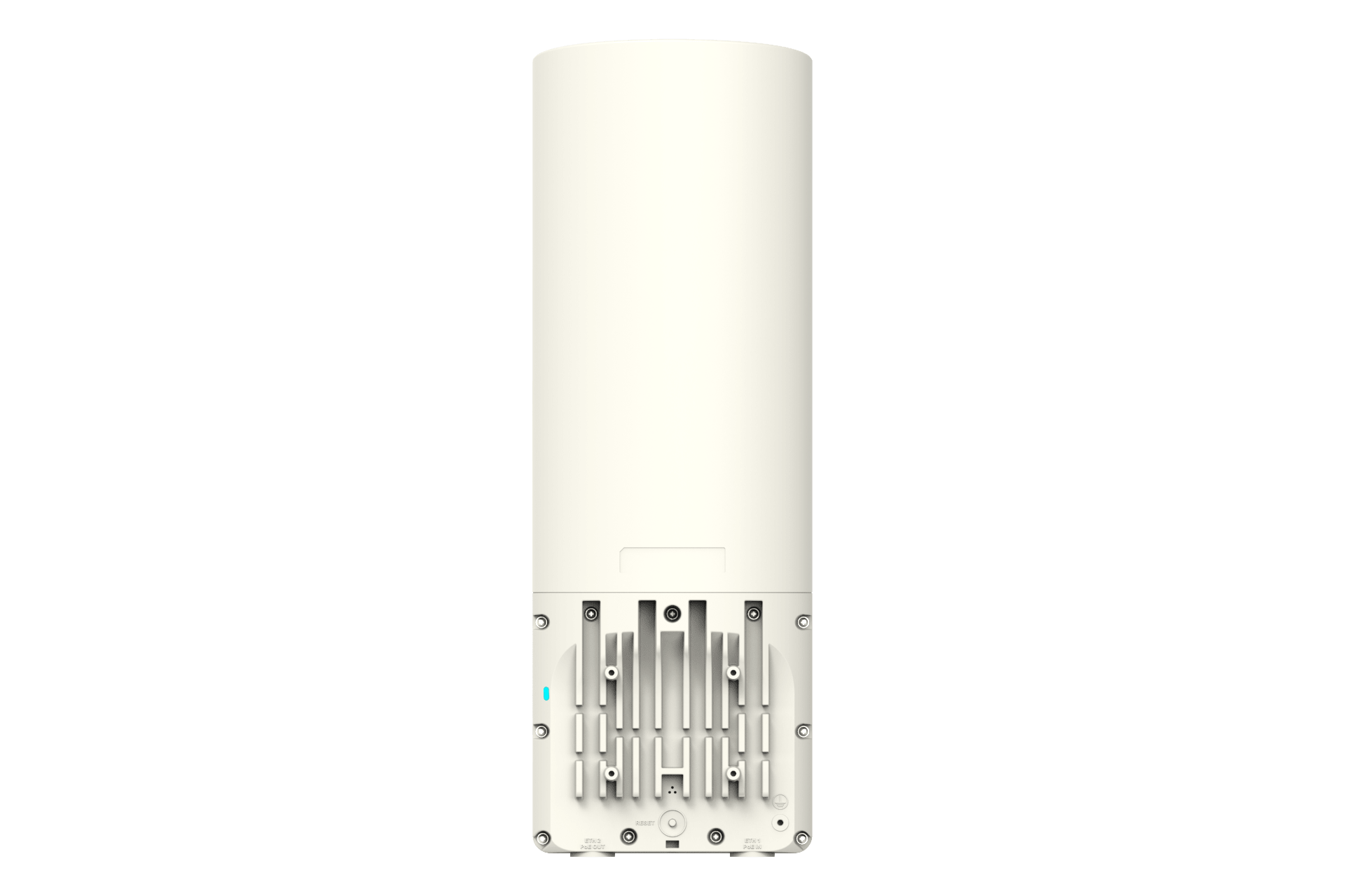

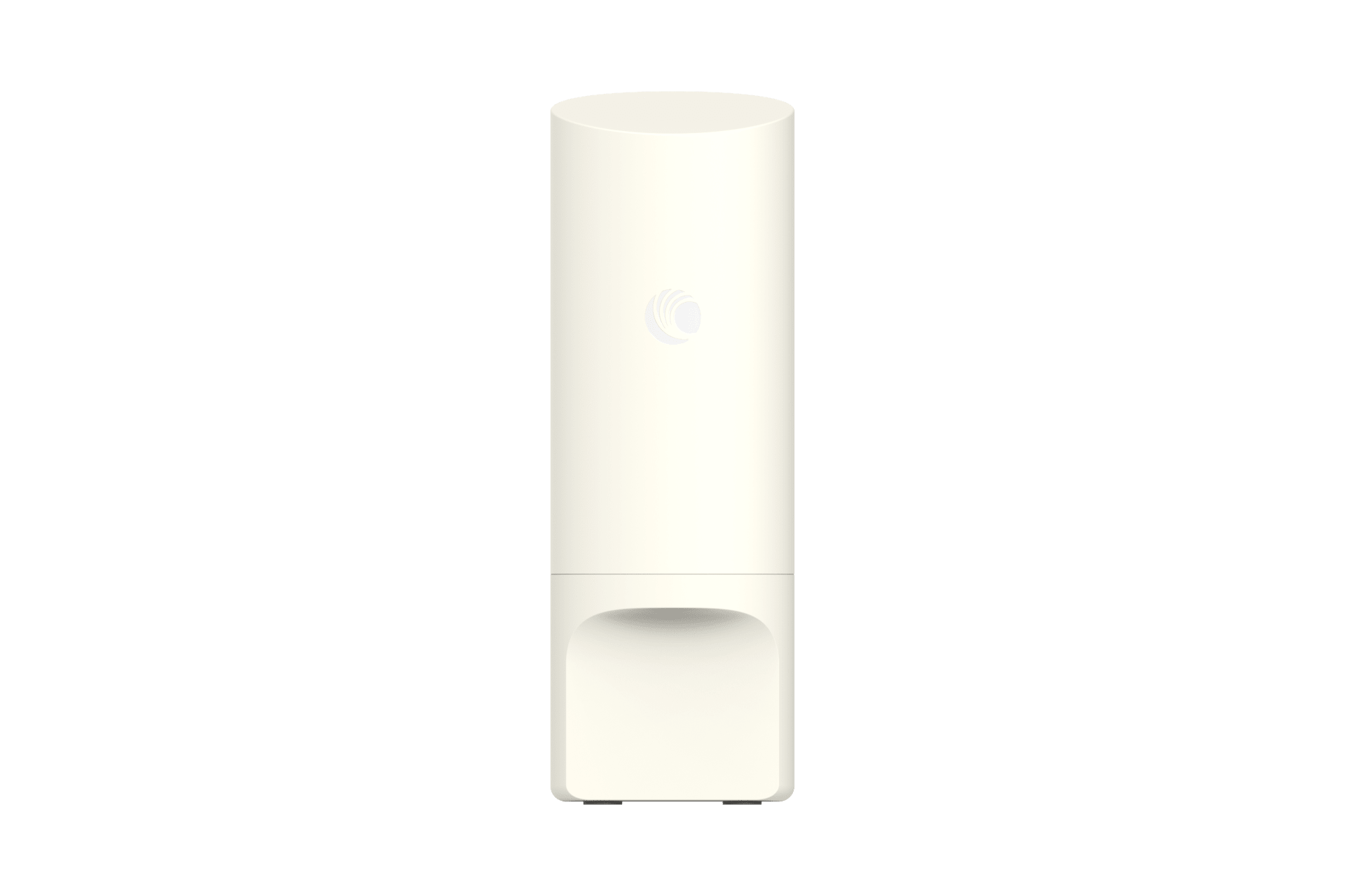

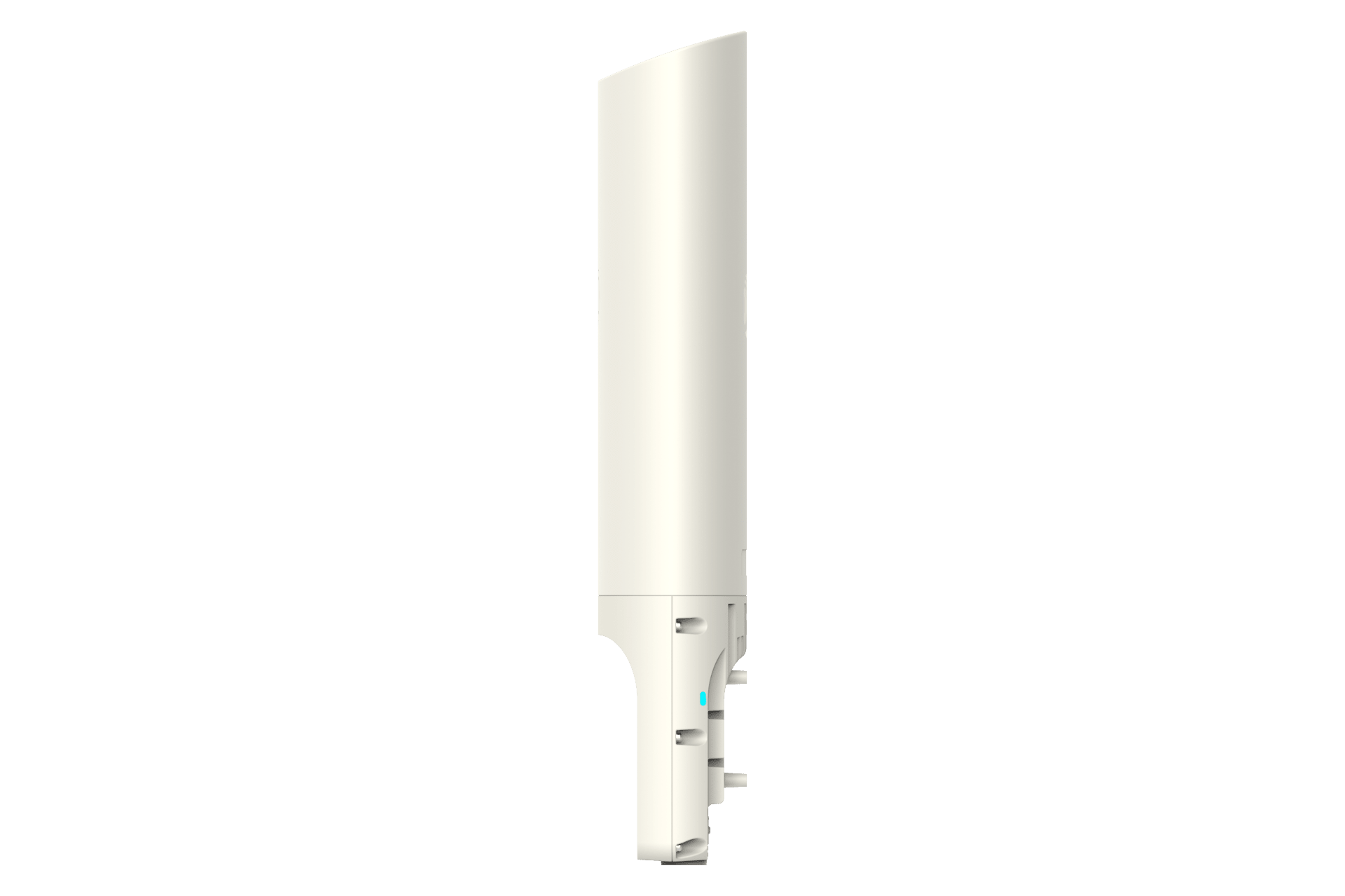

Cambium Networks XV2-2T Outdoor Dualband Wi-Fi 6 Access Point

The Cambium Networks XV2-2T0 is a robust Wi-Fi 6 outdoor access point for professional outdoor Wi-Fi coverage. With dual-radio 802.11ax, 2x2 technology, and an integrated high-efficiency omni antenna, the access point provides wide-area 360° omnidirectional coverage for hotspots, campus environments, and outdoor enterprise networks.

The 2.5-gigabit Ethernet uplink ensures fast network connectivity, while the additional 1-gigabit Ethernet port with power-out allows for the connection of further IP or Ethernet devices. The weatherproof IP67 housing, an operating temperature range of -40 °C to +65 °C, surge protection, and LTE coexistence filters make the XV2-2T0 a reliable solution for demanding outdoor installations.

Operating modes:
The Cambium XV2-2T0 can be operated controller-free as a standalone access point or centrally via Cambium cnMaestro. Additionally, the device supports mesh operation with multi-hop function, band steering, fast roaming, scheduled Wi-Fi time profiles, and guest access via Captive Portal or EasyPass. This allows the access point to be flexibly integrated into professional Wi-Fi infrastructures.

Typical applications:
The XV2-2T0 is ideal for public Wi-Fi hotspots, campsites, school and university campuses, hotels, outdoor business areas, warehouses, industrial areas, municipal Wi-Fi projects, and extensive outdoor spaces. The omni antenna is particularly useful when uniform omnidirectional coverage is needed around the mounting point.

Additional devices such as IP cameras, other access points, Cambium Subscriber Modules, or other network-enabled components can be connected via the second Ethernet port with power-out. This allows outdoor networks to be efficiently expanded without planning a separate power supply or additional cabling for each device.

Management is done via Cambium cnMaestro, either cloud-based or local. Administrators can centrally monitor and manage access points, clients, Wi-Fi profiles, guest access, and network performance. The Cambium XV2-2T0 is thus a powerful Wi-Fi 6 solution for robust, scalable, and large-area outdoor Wi-Fi networks.
